rear seat hardware

Post by parafyn »

when i got my bug the interior was completely out of it and had no hardware for the rear seat. ive found the pivot bolts online for the back rest but i cant find any info on the 2 bolts that hold the bar that goes across that holds the bottom of the rear seat in place, i cant even find the bar online! how does one restore a bug if that piece is missing? anyone know what size these bolts are or know somewhere i can order them???
Top
User avatar
Digger89L
Senior Member
Posts: 258
Joined: Sun May 12, 2013 10:23 am
Location: Western Canada (SK)

Post by Digger89L »

Just a standard 10mm bolt, about a half-inch long. The bar that supports the front edge of the rear seat bottom is like a piece of angel-iron laid flat to form a ledge that the rear seat bottom front edge sits on. There are two bolts :one at each end, just below the door post. No bolt in the centre ...just a lump that fits into a divit in the floor hump. If you're trying to do a "parts perfect" restoration, you'll have to find another bug to salvage this part from ...or fabricate one out of some angle iron that is one-inch wide on each side. See pics for what the actual support looks like.
Attachments

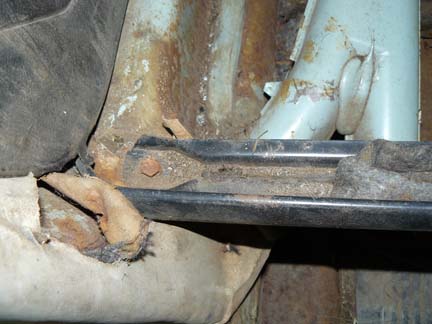

Driver side
Driver side

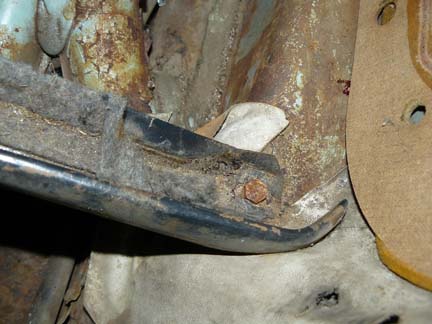

passenger side
passenger side

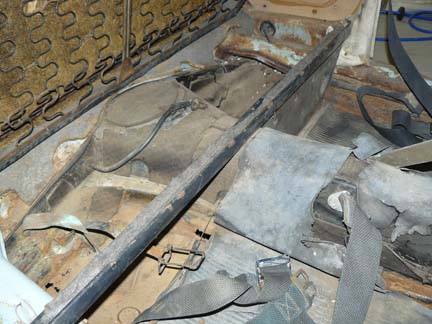

Support bar
Support bar
Top
parafyn
New Member
Posts: 7
Joined: Thu May 23, 2013 1:06 pm
Location: Spokane WA

Post by parafyn »

thanks for the reply and info digger! i have the bar just not the bolts... it trips me out that theres all sorts of other parts available for these bugs new except that bar.
Top
Blue Baron
Senior Member
Posts: 879
Joined: Sun Jan 18, 2009 8:34 pm
Location: Tampa, Florida

Post by Blue Baron »

The reason they're not available as a replacement part is because they would be a loss leader. It's the type of part that is seldom needed new.
Top
branston
Senior Member
Posts: 111
Joined: Fri Feb 20, 2009 4:18 pm
Location: Lock Haven, PA and St.Ives. UK

Re: rear seat hardware

Post by branston »

parafyn wrote:when i got my bug the interior was completely out of it and had no hardware for the rear seat. ive found the pivot bolts online for the back rest but i cant find any info on the 2 bolts that hold the bar that goes across that holds the bottom of the rear seat in place, i cant even find the bar online! how does one restore a bug if that piece is missing? anyone know what size these bolts are or know somewhere i can order them???
The bolys are M6 x 12 long and the seat rail is easy to find on samab, search or post a WTB.

I have some if you get stuck.
Top
parafyn
New Member
Posts: 7
Joined: Thu May 23, 2013 1:06 pm
Location: Spokane WA

Post by parafyn »

thanks branston, i got her all dialed in already
